Lenovo M810z LM70Z 16519-1 Schematic Diagram

How to Fix Lenovo M810z Motherboard Issues – Download Free LM70Z 16519-1 Schematic Diagram for Chip-Level Troubleshooting

If you’re a technician or DIY enthusiast dealing with a malfunctioning Lenovo M810z motherboard, having the right schematic diagram is crucial for effective troubleshooting. Many common motherboard issues—such as power failures, no display, or USB port malfunctions—can be resolved with the right technical approach.

In this guide, we’ll explore common Lenovo M810z motherboard issues, how to diagnose them, and where to download the free LM70Z 16519-1 schematic diagram for chip-level repairs.

Common Lenovo M810z Motherboard Issues

Before diving into repairs, it’s essential to identify the problem correctly. Here are some frequent issues with the LM70Z 16519-1 motherboard:

1. No Power (Motherboard Won’t Turn On)

• Possible Causes:
  • Faulty power supply (PSU)
  • Damaged power IC or MOSFET
  • Short circuit in the voltage regulator module (VRM)
  • Corrupted BIOS

2. No Display (Black Screen)

• Possible Causes:
  • Defective GPU or RAM
  • Damaged PCIe slot
  • BIOS corruption
  • Faulty display connectors

3. USB or Peripheral Ports Not Working

• Possible Causes:
  • Damaged USB controller IC
  • Broken traces or solder joints
  • Power delivery issues

4. Overheating or Random Shutdowns

• Possible Causes:
  • Faulty VRM cooling
  • Defective thermal sensors
  • Dust-clogged heatsinks

5. BIOS Issues (Failed Updates or Boot Loops)

• Possible Causes:
  • Corrupted BIOS chip
  • Incorrect BIOS flash
  • CMOS battery failure

How to Troubleshoot Lenovo M810z Motherboard Problems

To fix these issues, follow a systematic troubleshooting approach:

Step 1: Check Basic Connections

• Ensure the 24-pin ATX and 8-pin CPU power connectors are properly seated.
• Verify RAM and GPU are correctly installed.
• Test with a known-working PSU to rule out power supply issues.

Step 2: Inspect for Physical Damage

• Look for burnt components, swollen capacitors, or damaged traces.
• Check for loose or cold solder joints, especially around the VRM and USB ports.

Step 3: Test with Minimal Hardware

• Boot with only CPU, one RAM stick, and integrated GPU (if available).
• If the system powers on, gradually reconnect other components to isolate the faulty part.

Step 4: Use a Multimeter for Voltage Checks

• Measure 3.3V, 5V, and 12V rails from the PSU.
• Check VRM output voltages (CPU VCore should be ~1.0V-1.3V).
• Test BIOS chip voltage (usually 3.3V).

Step 5: Flash or Replace BIOS Chip

• If the BIOS is corrupted, reflash it using a programmer (CH341A or similar).
• Replace the BIOS chip if flashing fails.

Why You Need the LM70Z 16519-1 Schematic Diagram

For chip-level repairs, a LM70Z 16519-1 schematic diagram is essential because it provides:

✅ Circuit layouts – Helps trace power delivery and signal paths.
✅ Component references – Identifies ICs, resistors, capacitors, and their values.
✅ Voltage test points – Guides where to check for correct power levels.
✅ Signal flow diagrams – Assists in diagnosing communication errors (e.g., between CPU and RAM).

Without a schematic, troubleshooting becomes guesswork, increasing the risk of further damage.

Where to Download the Free Lenovo M810z Schematic Diagram

Finding an official schematic for modern motherboards can be challenging, as manufacturers rarely release them publicly. However, we’ve sourced a free LM70Z 16519-1 schematic diagram for technicians:

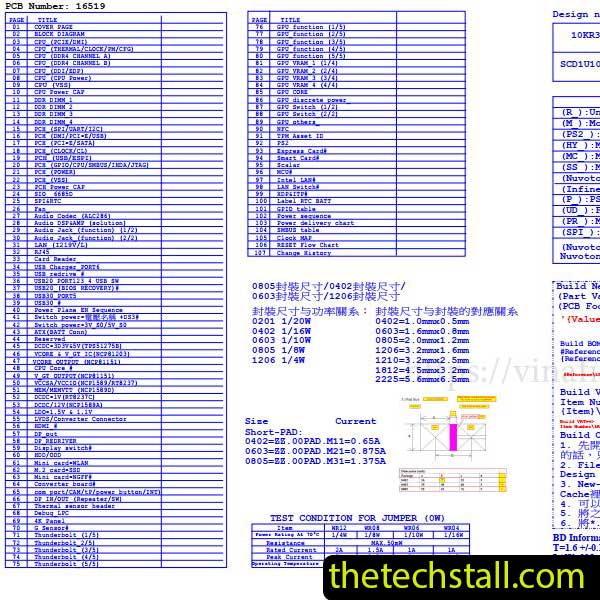

Download “Lenovo M810z LM70Z 16519-1 Schematic Diagram” view – Downloaded 52 times – 38.84 KB

Final Tips for Successful Motherboard Repair

1. Use an ESD-safe workspace to prevent static damage.
2. Invest in quality tools (multimeter, soldering station, hot air gun).
3. Document your steps to avoid missing connections.
4. Refer to the schematic for accurate troubleshooting.

Fixing an Lenovo M810z motherboard requires patience, the right tools, and a reliable schematic diagram. By following structured troubleshooting steps and using the free LM70Z 16519-1 schematic, you can diagnose and repair common issues efficiently.

📥 Download the LM70Z 16519-1 schematic diagram now and take your motherboard repair skills to the next level!
