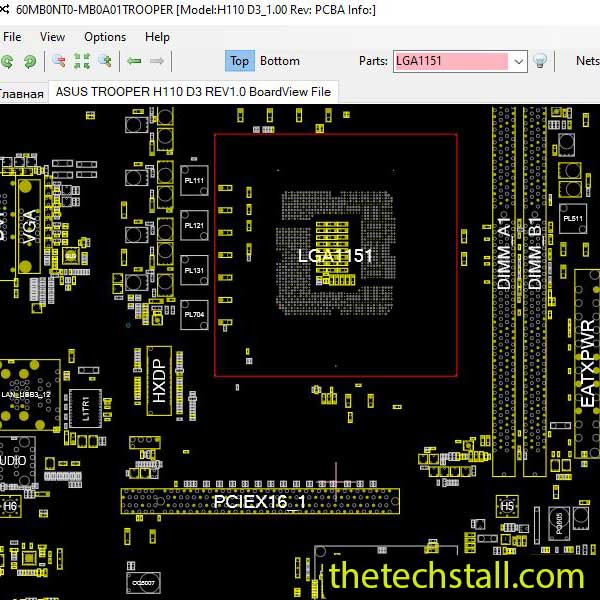

ASUS TROOPER H110 D3 BoardView File

Fixing ASUS TROOPER H110 D3 Motherboard Issues? Here’s How the TROOPER H110 D3 BoardView File Makes Chip-Level Diagnosis Easy (Free Download Inside)

If you’ve ever faced frustrating power issues, display failures, or dead USB ports on the ASUS TROOPER H110 D3 motherboard, you know just how challenging motherboard repairs can get. Whether you’re a professional technician or a dedicated hobbyist, the key to a successful chip-level diagnosis is having the right technical resources at your fingertips. That’s where the TROOPER H110 D3 BoardView File comes in—and the good news is, we’re offering it as a free download in this post!

Why You Need the TROOPER H110 D3 BoardView File

When dealing with hardware faults, having a schematic diagram is helpful, but a BoardView file gives you the full picture—literally. The TROOPER H110 D3 BoardView File is essential for anyone working on ASUS TROOPER H110 D3 motherboards, as it maps out every tiny detail, from IC pinouts to capacitor placements.

Using this file, you can:

• Quickly identify faulty components
• Trace voltage lines and signal paths
• Confirm continuity between pads and chips
• Reduce time spent on guesswork or trial-and-error

Essentially, it transforms your complex troubleshooting process into a clear, visual diagnostic experience.

Common Problems with the ASUS TROOPER H110 D3 Motherboard

The ASUS TROOPER H110 D3 series is known for decent performance and affordability, but like all hardware, it’s not immune to failure. Here are some issues users often report:

• No Power or Dead Motherboard: A common issue often caused by shorted MOSFETs or faulty power ICs.
• No Display or POST Errors: May be due to BIOS corruption, RAM slot failure, or PCH-related problems.
• USB Ports Not Working: Could involve damaged USB filters or broken power lines.
• Overheating and Shutdowns: Sometimes caused by damaged temperature sensors or failing VRMs.

Without a BoardView file, diagnosing these issues often involves probing multiple areas manually, which is time-consuming and prone to error.

How the BoardView File Simplifies Diagnostics

The TROOPER H110 D3 BoardView File acts like a GPS for your motherboard repair journey. Here’s how it helps:

1. Visual Pin Mapping: You can locate individual components and understand how they’re connected without dissecting the board blindly.
2. Quick Fault Tracing: Whether you’re dealing with a blown capacitor or a shorted chip, the BoardView lets you trace the exact path of signals and voltages.
3. Improved Accuracy: You’ll drastically reduce the chance of damaging nearby components during diagnosis.
4. Faster Repairs: Time is money—especially in repair shops. BoardView files cut repair times by up to 60%.

How to Use the TROOPER H110 D3 BoardView File for Repairs

Step 1: Download the BoardView File

You can download the TROOPER H110 D3 BoardView file for free from the link at the end of this article.

Step 2: Open the File in a BoardViewer Tool

Common software for viewing BoardView files includes:

• OpenBoardView (Free, supports .BRD, .FZ, .BV files)
• BoardViewer (More advanced features)

Step 3: Follow Signal Traces & Test Points

• Search for the component you suspect is faulty.
• Check connected resistors, capacitors, and diodes.
• Use a multimeter to verify voltages and continuity.

Step 4: Compare with a Working Board (If Available)

If you have a working ASUS TROOPER H110 D3 motherboard, compare resistance and voltage readings to isolate the issue.

Free Download: TROOPER H110 D3 BoardView File

We know how important these files are, especially when dealing with outdated or less-documented motherboards like the ASUS TROOPER H110 D3. That’s why we’re offering the TROOPER H110 D3 BoardView File and Schematic Diagram absolutely free.

No paywalls, no signups—just straightforward support for your repair work.

Download “ASUS TROOPER H110 D3 REV1.0 BoardView File” view – Downloaded 19 times – 40.88 KB

Repairing a motherboard at the chip level is no longer a daunting task when you have the right documentation. The TROOPER H110 D3 BoardView File, combined with the schematic for the ASUS TROOPER H110 D3 motherboard, gives you everything you need to diagnose and repair with confidence.

Whether you’re an experienced technician or just getting started in the world of electronics repair, downloading these resources can save you hours of work and prevent costly mistakes.

So before you dive into your next fix, make sure you’ve got your tools ready—and don’t forget to grab your free TROOPER H110 D3 BoardView File and schematic diagram today.
