Laptop repair technicians often encounter challenges when diagnosing motherboard faults, especially when dealing with power issues, dead boards, or abnormal short circuits. One of the most reliable diagnostic approaches in modern repair practice is impedance testing. For Lenovo IdeaPad 3-15ITL6 laptops, equipped with the HS460 HS560 NM-D472 motherboard, having a clear reference of impedance values saves hours of troubleshooting time.
In this blog, we provide a complete reference of HS460 HS560 NM-D472 motherboard impedance values.
When a laptop refuses to power on, shows random restarts, or has no display, the first suspicion often lies with the motherboard. However, identifying the faulty section is not always straightforward. Traditional voltage measurements alone may not reveal issues such as:
By measuring impedance values across critical points of the HS460 HS560 NM-D472 motherboard, technicians can compare the live board with reference values. Any major deviation immediately highlights the problematic circuit, reducing guesswork and unnecessary component replacements.
UT61+ Series 1000V True RMS Digital Multimeters learn more

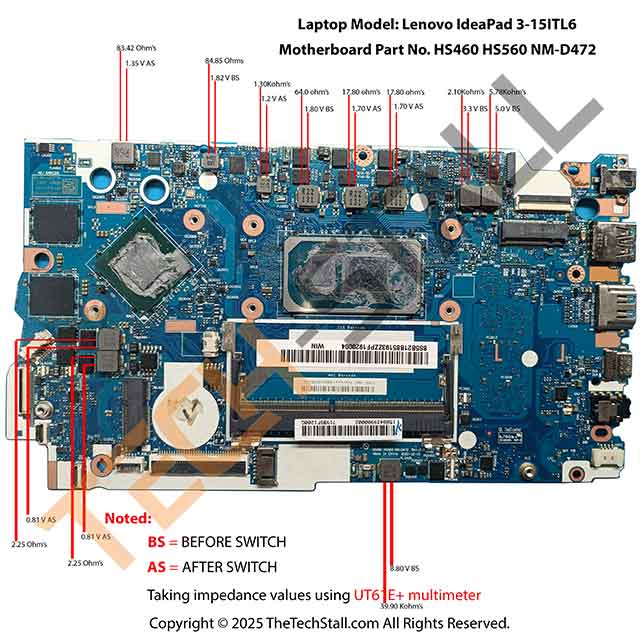

Note-1: When it came to noting the HS460 HS560 NM-D472 motherboard impedance values, AC Power, Battery Power, and even CMOS power were not connected to the motherboard.
Note-2: The coil voltage is measured when the laptop power adapter and CMOS battery are connected to the laptop motherboard. The voltages mentioned in the voltage note AS can be found without turning on the laptop and the voltages mentioned in the voltage note BS can be found after turning on the laptop.
If this type of information is useful in laptop motherboard repair, please let us know in the comments below.
For tips on chip-level repair of laptop and desktop motherboards, visit our YouTube channel Repair Assistant and subscribe to our Facebook page repairassiastantbd for repair resource updates.
